Part Number: 51-0117

Application: Custom Application

Details:

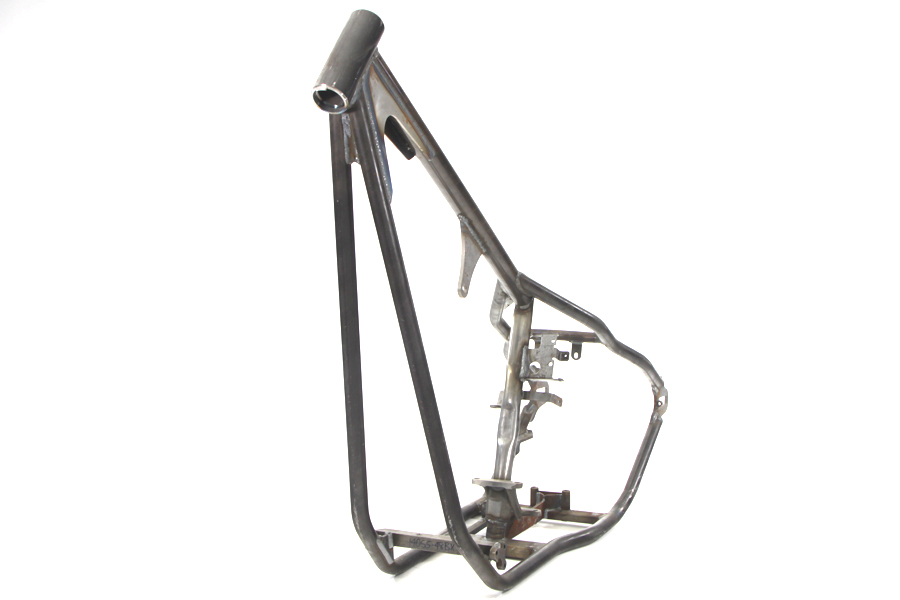

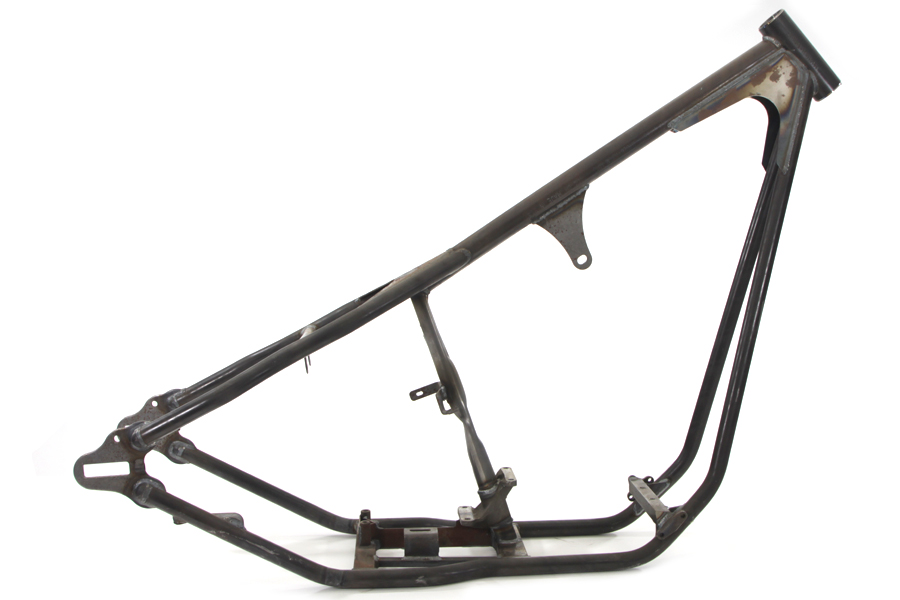

Tall Chopper rigid frame is Swedish style featuring a 4" stretch in backbone, 8" stretch in down tubes, and a 45 degree rake. Uses a 3/4" axle. Chopper rigid frame accepts Evolution engine, Softail oil tank, 6 degree billet trees with internal fork stops, and should be used with 16" overstock fork tube assembly. Frame is disc brake type, accepts left side belt drive, 5-speed transmission, and a 250 tire. Frame accepts a diameter of 3/4" rear axle. Manufacturer's Statement of Origin is supplied for the frame. **NOTE: All frames are shipped to the lower 48 states by carrier truck, please allow extra time for delivery. All other shipments will be made air freight collect. *Note: UPS may consider this part as packaged " oversize" for shipment, as compared to the actual weight, which will result in higher shipping costs.

UOM: 1 - EA


Tech. Notes:
Suggetsed to use #24-0067 triple tree set. Suggested to use #24-0968 fork tube assembly.

Country of Origin: USA
